6/16

• you will learn how to use the computer to approximate the solution of nonlinear and linear equations
  • can't always get the exact solution
• numerical integration and differentiation
• solution of differential equations
• the potential and limitations of the computer to solve mathematical problems

1. 25% Midterm
2. 25% Final
3. 50% Projects and Homework

1. floating and fixed point representation and also computational error
2. solutions of non-linear equations of the form f(x) = 0
3. solution of linear systems of form Ax = B
4. interpolation
5. curve fitting
6. numerical differentiation
7. numerical integration
8. numerical optimization
9. solution of differential equations

• computers use binary numbers
• this is because it was easier to implement circuits with 2 states "on" and "off"
• Example: 537.5₁₀ (subindex 10 means base)
• Decimal Base: (5x10²) + (3x10¹) + (7x10⁰) + (5x10^-1)
• Binary Base: (1x2⁹) + (0x2⁸) + (0x2⁷) + (0x2⁶) + (0x2⁵) + (1x2⁴) + (1x2³) + (0x2²) + (0x2¹) + (1x2⁰) + (1x2^-1) = 1000011001.1₂

• seperate integer part from the fraction: N.F
• N = b₀ + (b₁x2¹) + (b₂x2²) + ... + (b_kx2^k)
• we wish to find b_i (0 or 1)
• therefore, we divide by 2
• N/2 = b₀/2 + (b₁x2⁰) + ... + (b_kx2^k-1)
• b₀/2 = remainder
• (b₁x2⁰) + ... + (b_kx2^k-1) = integer part
• the remainder determines if b₀ is 0 or 1; repeat until integer part is 0
• Example: 34₁₀
• 34/2 = 17 remainder 0
• 17/2 = 8 remainder 1
• 8/2 = 4 remainder 0
• 4/2 = 2 remainder 0
• 2/2 = 1 remainder 0
• 1/2 = 0 remainder 1
• therefore, 34₁₀ = 100010
• 0.1₂ = 1x2^-1 = 1/2
• 0.01₂ = 1x2^-2 = 1/4
• 0.11₂ = 1x2^-1 + 1x2^-2= 3/4
• Example: What about 1/3?
• 1/3 = (1/2 x 0) + (1/4 x 1) + (1/8 x 0) + ... = .01010101....₂

6/17

• fixed point
• number of bits for integer part and fraction is fixed
• Example: NNNN.FF
• 4 bits integer part
• 2 bits fraction
• Largest number: 1111.11 = 1x2³ + ... + 1x2^-2 = 15.75
• Smallest number: 0
• Usually you give more bits for both integer part and fraction
• Example: 2 bytes integer part and 2 bytes fraction
• Advantages:
1. Fast arithmetic (use the same integer arithmetic)
• 1.01₂ + 10.10₂ = 1.25₁₀ + 2.5₁₀ = 11.11₂ = 3.75₁₀
2. Used in signal processors and signal processor program that require real time operations
• Example: MP3 Player
• Disadvantages:
1. very restricted range
2. bad precision: smallest number is restricted to number of bits used in the fraction
3. generates alot of error during operations
• floating point
• the decimal point moves around to keep the desired precision
• using scientific notation (Q x 10^N) where Q is called mantissa and the precision of the number depends on the number of bits used to represent Q
• the numbers are represented in the computer as x = +/- q * 2ⁿ where q and n are represented with a fixed number of bits
• to have a unique representation for each number, numbers are adjusted so that q is going to be .5 <= q < 1 except for 0
• the uniqueness is useful for some operations such as checking for equality

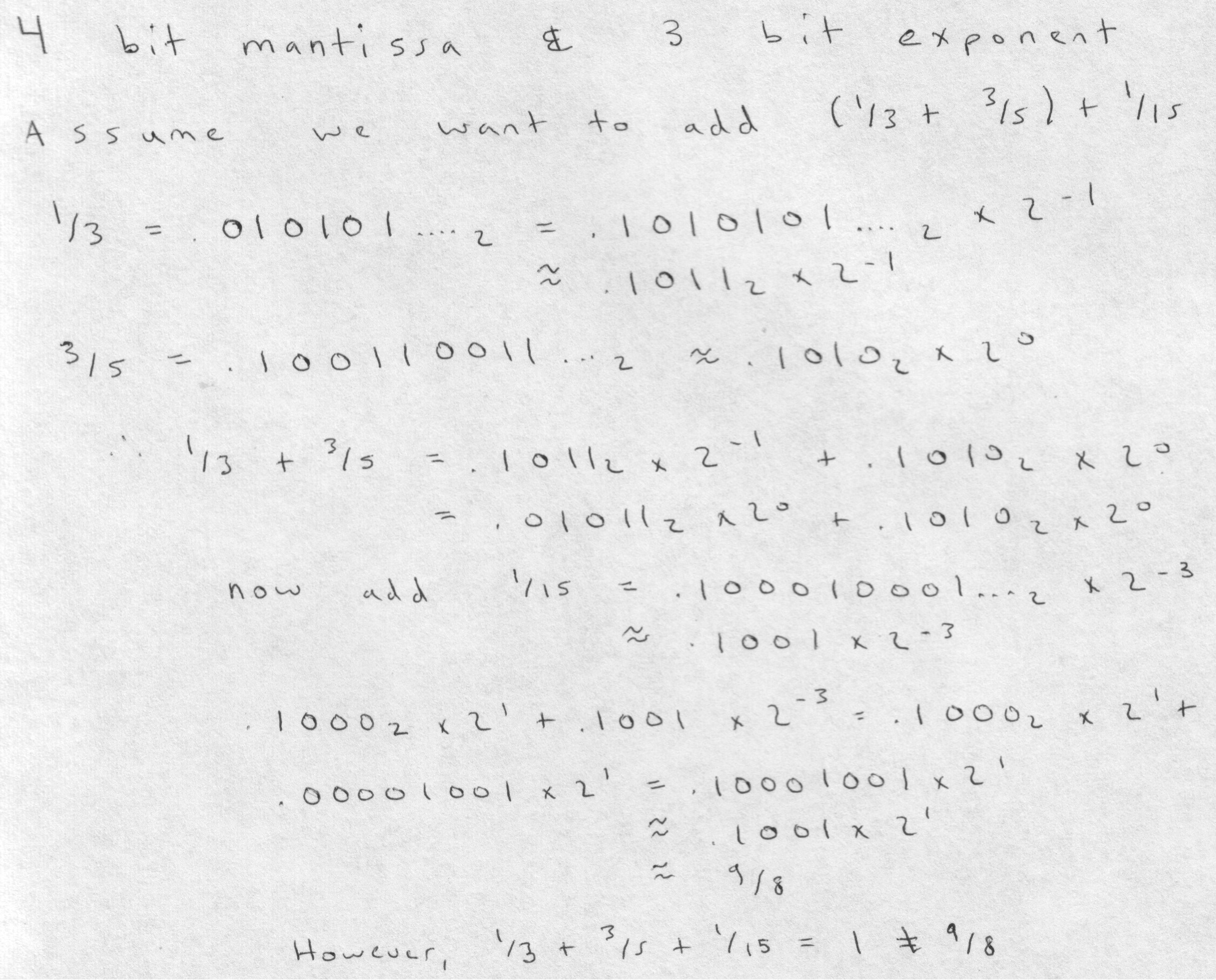

• Example:



• absolute error = | 1 - 1.125 | = .125
• relative error = ( | 1 - 1.125 | / 1 ) x 100 = 12.5%

• single precision (float)
• uses 4 bytes (32 bits)
• 24 bits mantissa (1 bit for sign)
• 8 bits exponent (1 bit for sign)
• range is 2^-128 to 2¹²⁷
• accuracy is the smallest difference between 2 numbers with exponent 0 = .10000...1 x 2^-23 => about 6 decimal digits of precision
• double precision
• uses 8 bytes (64 bits)
• 53 bits mantissa (1 bit for sign)
• 11 bits exponent (1 bit for sign)
• range is 2¹⁰²⁴
• accuracy is 2^-52 => about 15 digits of accuracy

6/18

• pi = 3.141592654
• using 3 digits for fraction
• chop-off: 3.141
• round-off: 3.142

• p* = p + e_p
• q* = q + e_q
• sum: p* + q* = p + q + (e_p + e_q)
• error = e_p + e_q
• error = sum of errors
• product: p*q* = (p + e_p)(q + e_q) = pq + pe_q + e_pq + e_pe_q
• error = pe_q + e_pq + e_pe_q
• error is amplified by magnitude of p and q

1. stable - if small initial errors stay small
2. unstable - if small initial errors get large after several iterations

• we will use "iteration" to solve these equations
• starting with a value P₀ and a function P_k+1 = g*P_K evaluate P₁, P₂, P₃
• we use a stopping criteria to stop computation such as | P_k - P_k+1 | < E

1. fixed point - a fixed point of g(x) is a real umber p such that p = g(p)
2. geometrically - the fixed point of a function y = g(x) are the points of intersection between y = g(x) and the line y = x



3. fixed point iteration - an equation of the form P_n+1 = g*P_n for n = 0,1,2....
• Example: x² - 2x + 1 = 0
• get a fixed point iteration equation
• x² + 1 = 2x => x = (x² + 1)/2 => x_k+1 = (x_k² + 1)/2
• assume x₀ = 0
• x₁ = 1/2, x₂ = 5/8, .... as k->infinity, x-> 1
4. fixed point theorem
• if | g'(x) | <= k < 1 for x element of [a,b] and g(x) element of [a,b], then the iteration P_n = g(P_n-1) will converge to a unique fixed point P element of [a,b]. In this case, P is said to be an attractive fixed point
• if | g'(x) | > 1 then the iteration then the iteration P_n = g(P_n-1) will diverge
• 2 cases for convergence

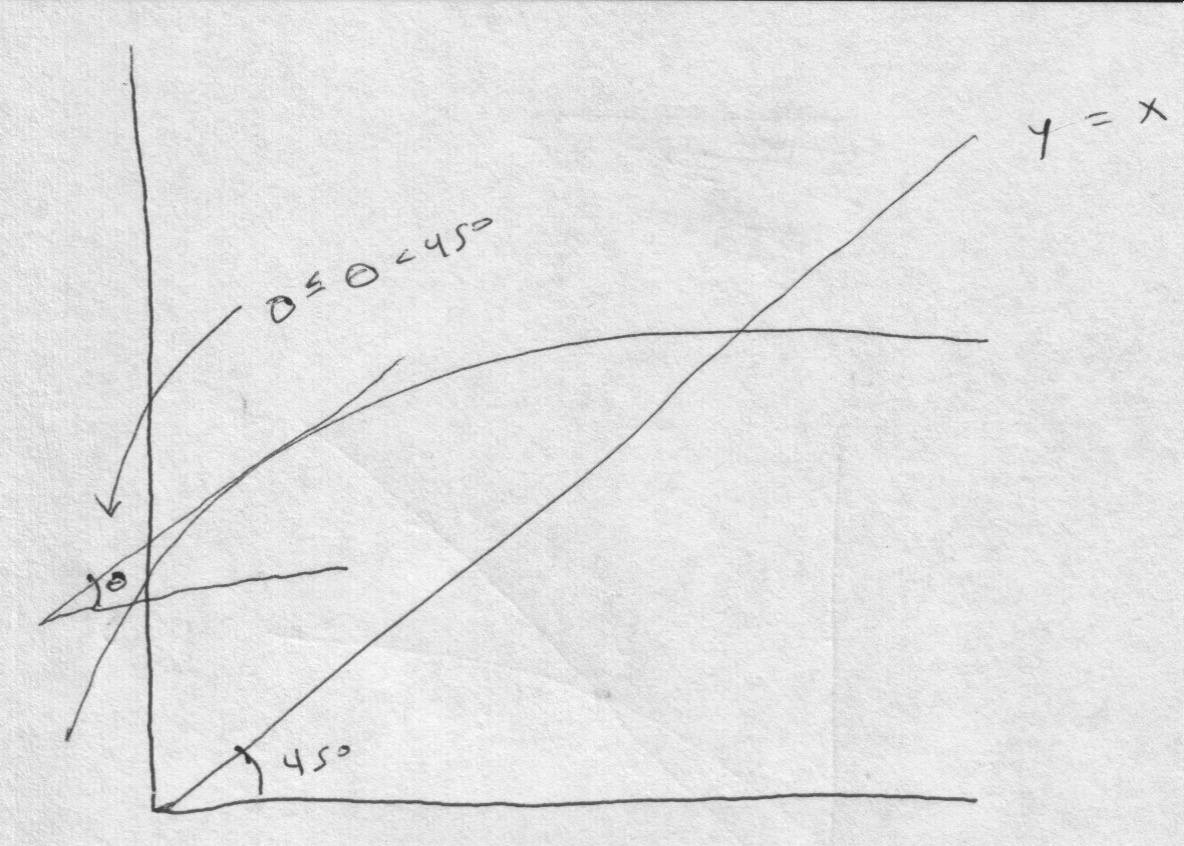

1. 0 < g'(P) < 1 => monotone convergence (we expect the slop of g(x) to be below 45 degrees)

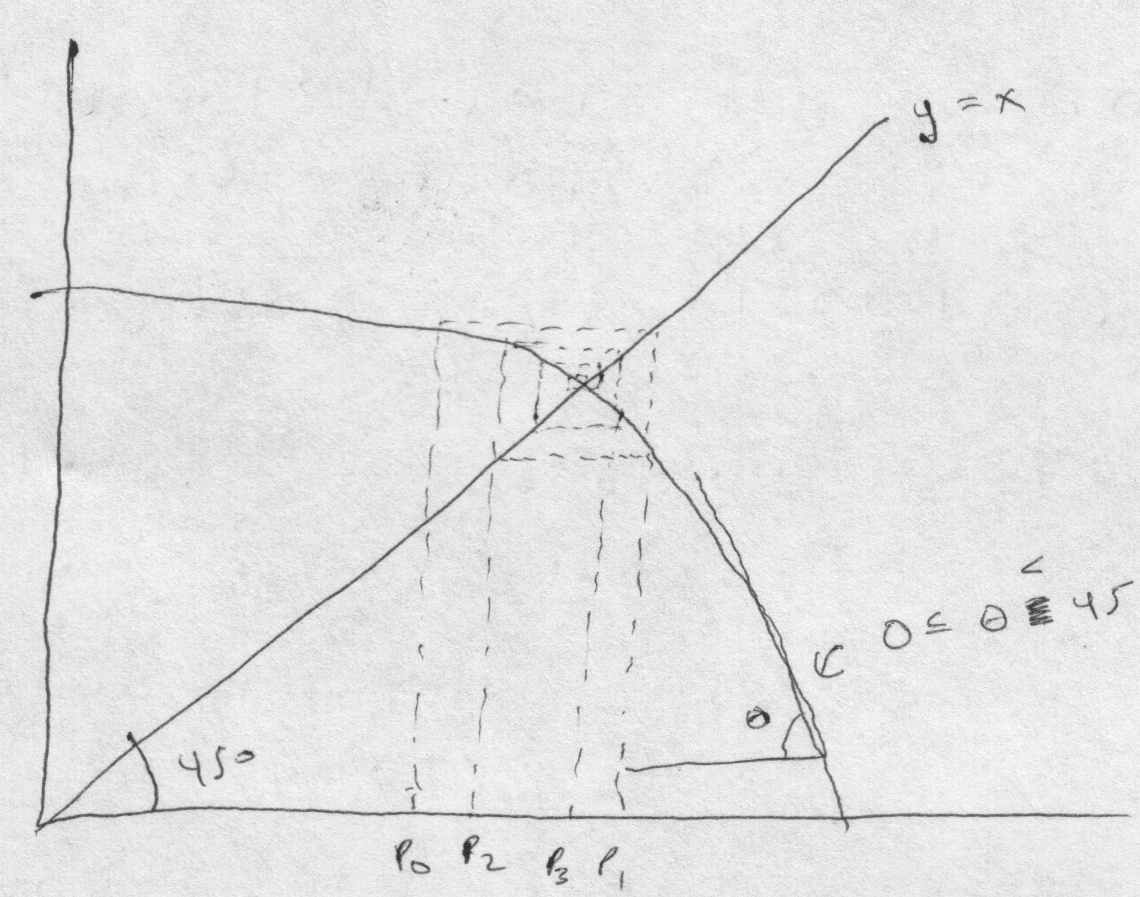

2. -1 < g'(P) < 0 => oscillating convergence (we expect the slope of g(x) to be below 45 degrees)

• what kind of convergence did we have in previous example?
• x_k+1 = (x_k² + 1)/2
• g(x) = (x_k² + 1)/2
• g'(x) = x
• as long as | g'(x) | < 1 and y = g(x), y element of [a,b] and x element of [a,b], then g(x) will converge

6/19

• If | g'(x) | <= 1 for all x element of [a,b] and g(x) element of [a,b], then g(x) converges
• If | g'(x) | > 1, then g(x) will diverge
• Example: x² - 2x + 1 = 0
• x_k+1 = ( x_k² + 1 )/2
• x₀ = 0
=> x₁ = .5 => ... => x_k+1 = 1
• g(x) = ( x² + 1 )/2
• g'(x) = x
• g'(0) = 0
=> therefore by fixed point theorem, this converges
• Example: now let x₀ = 2
• g'(x) = x => g'(2) = 2
• therefore by fixed point theorem, this diverges

1. Bisection Method
• similar to binary search

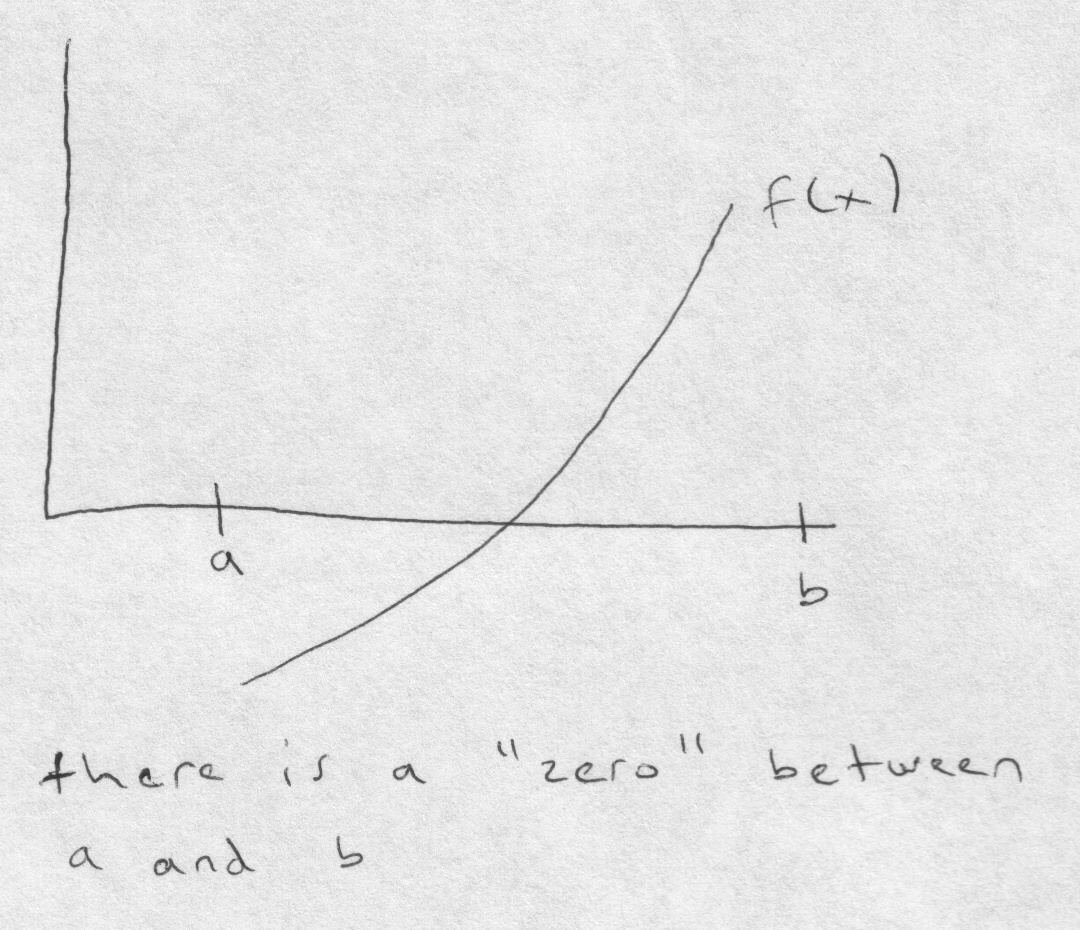

• starting with two values a,b (an interval) such that a < b and f(a) < 0 and f(b) > 0 or f(a) > 0 and f(b) < 0, this means there is an x such that a <= x <= b and f(x) = 0

• get middle point of [a,b] => c = (a + b)/2
• if f(a) and f(c) have opposite signs then a zero lies in the interval [a,c] and substitute c for b
• if f(b) and f(c) have opposite signs then a zero lies in the interval [c,b] and substitute c for a
• if f(c) = 0, then c is a zero
• Example: sin(x) = 1/2 ( x is in degrees )
• f(x) = sin(x) - 1/2 = 0
• start with a = 0, b = 50
• f(0) = 0 - .5 = -.5 , f(50) = .266
• f(a) < 0 and f(b) > 0 so we are ok

a	b	c	f(c)
0	50	25	-.077
25	50	37.5	.1087
25	37.5	31.25	.018

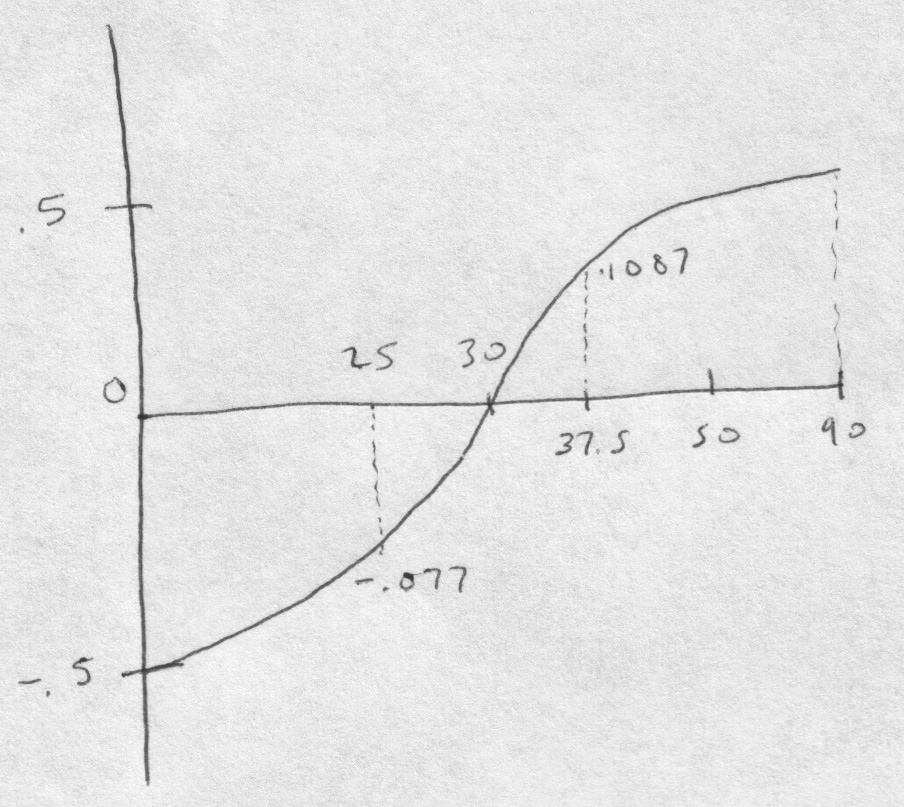

• c is approaching 30 degrees as noticed in graph below

• Analysis of algorithm
• at each step the range a-b is reduced by half, therefore at each step n | a_n - b_n | = ( |a₀ - b₀ | )/2ⁿ
• if we want an approximation error < E, how many steps do we need?
• | a_n - b_n | = ( |a₀ - b₀ | )/2ⁿ < E
• ( |a₀ - b₀ | )/E < 2ⁿ
• log{ ( |a₀ - b₀ | )/E } < log( 2ⁿ )
• log{ ( |a₀ - b₀ | )/E } < n * log(2)
• [ log{ ( |a₀ - b₀ | )/E } ]/ log(2) < n
• Disadvantage: must choose a and b close so you must know what you are looking for

• Two cases for convergence
1. monotone convergence: 0 < g'(P) < 1
2. oscillating convergence: -1 < g'(P) < 0
• Two cases for divergence

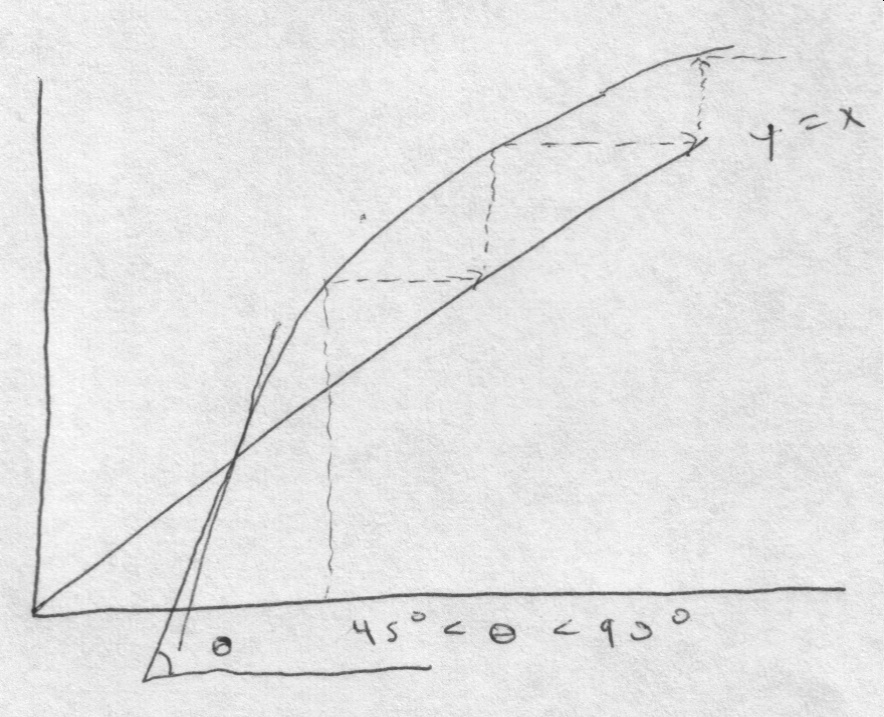

1. monotone divergence
• 1 < g'(P)

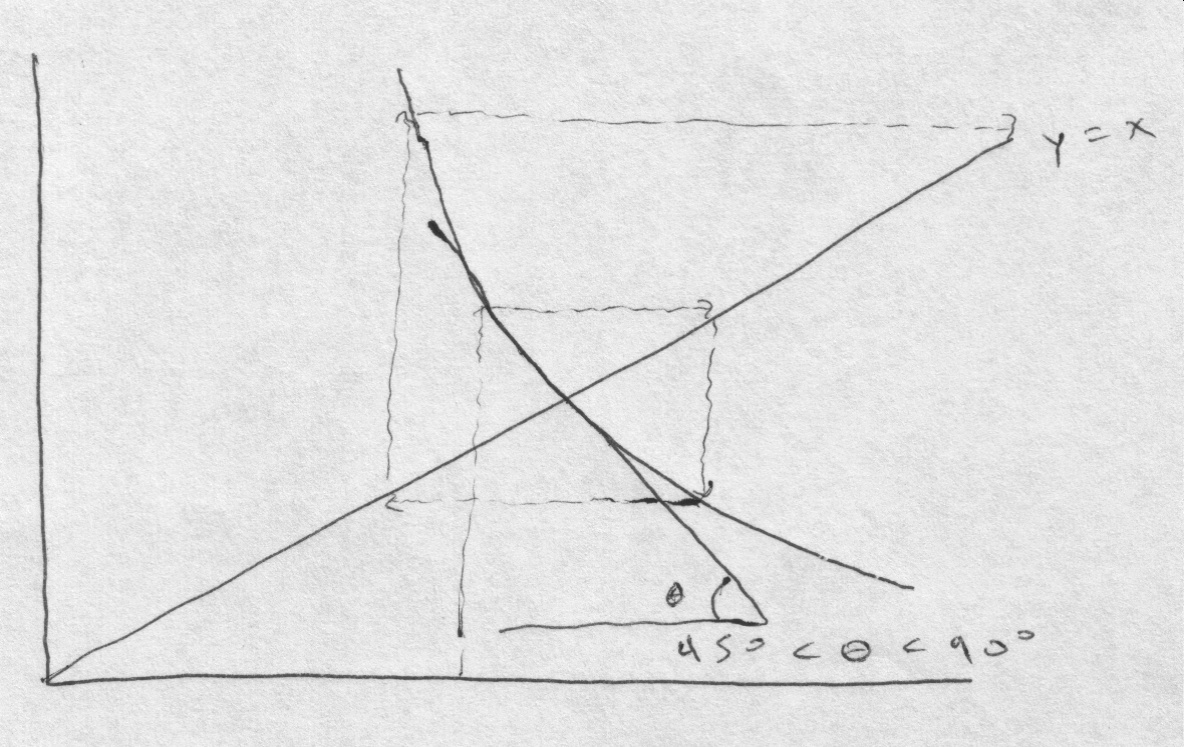

2. divergent oscillation
• g'(P) < -1


6/20

• False Position (Regula Falsi)
• similar to bisection method
• needs an interval [a,b] where a zero is found
• converges faster than bisection
• graphically

• a line is subtended between ( a, f(a) ) and ( b, f(b) )
• we use the same rules as in bisection
• if f(a) and f(c) have different signs, assign b as c
• if f(b) and f(c) have different signs, assign a as c
• how to compute c?
• get slope: m = [f(a) - f(b)]/[a-b] and m = [f(b) - 0]/[b - c]
• [f(a) - f(b)]/[a-b] = [f(b) - 0]/[b - c]
• c = b - [f(b) * { (a - b)/( f(a) - f(b) )}]
• example: sin(x) = 1/2
• f(x) = sin(x) - 1/2 = 0
• a = 0, b = 50

i	a	f(a)	b	f(b)	c	f(c)
0	0	-1/2	50	.266	32.637	.0393
1	0	-1/2	32.637	.0393	30.259	.0039

• c approaches 30 and f(c) approaches 0
• when to stop the iterations?
• when the method converges to the desired precision
1. horizontal convergence - instead of expecting f(x) = 0, expect f(x) to be between some small error element of ( |f(x)| < E )
• for example, if E = .001 in the previous example, then we would stop at iteration i = 2 ( | .000375 | < .001 )

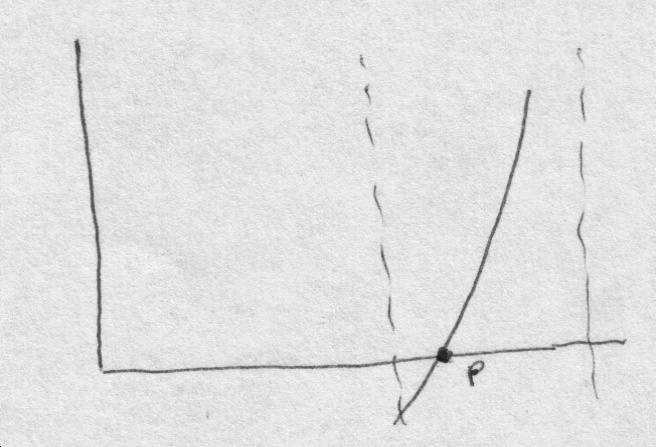

• geometrically, this means that the zero is in some horizontal band

2. vertical convergence - stop when x is at a distance G from P (the solution), therefore stop when | x - p | < G
• however, this is not possible to know since this implies that we already know p
• this is approximated by determining when | P_n - P_n-1 | < G

3. use both horizontal and vertical convergence
• stop when | P_n - P_n-1 | < G and | f(x) | < E

• functions where obtaining the solution of f(x) = 0 is difficult

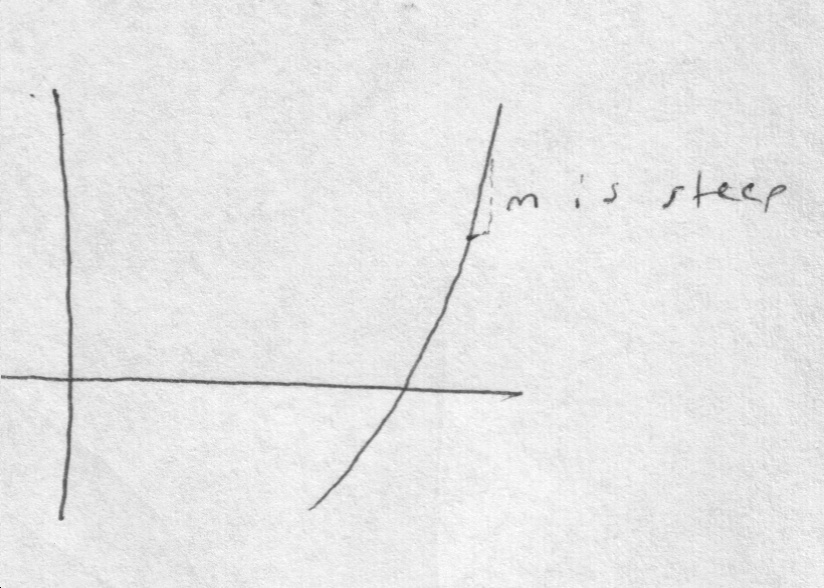

• if the graph y = f(x) is steep near the root (p,0) then the root finding is "well conditioned", i.e. a solution with good precision is easy to obtain

• if the graph y = f(x) is shallow near p(0) then the root finding is "ill conditioned", i.e. the root finding may only have a few significant digits
