Graph Induced Complex on Point Data

We developed a new simplicial complex called graph induced complex for topological inference and surface reconstruction from point data. It enjoys the the advantages of both Vietoris-Rips and witness complexes. It only needs a graph connecting the original sample points from which it builds a complex on the subsample thus taming the size considerably. We show that, using the graph induced complex one can
(i) infer the one dimensional homology of a manifold from a very lean subsample,
(ii) reconstruct a surface in three dimension from a sparse subsample without computing Delaunay triangulations,
(iii) infer the persistent homology groups of compact sets from a sufﬁciently dense sample.

These results were published in the following paper:

[DFW13] T. K. Dey, F. Fan, and Y. Wang. Graph Induced Complex on Point Data. Proc. 29th Annu. Sympos. Comput. Geom. (2013).

GIComplex software based on the [DFW13] is available.

This project is supported by NSF grants CCF 1318595, CCF 1319406, CCF 1116258

Construction of the graph induced complex

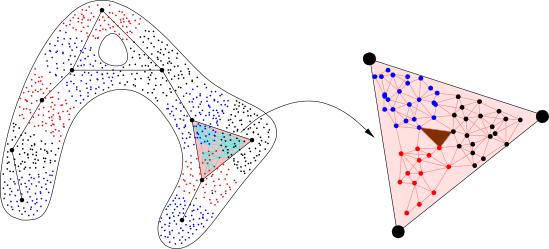

The following figures illustrate the definition of the graph induced complex.


Let (P,d) be a point set with a metric d and G(P) be a graph on P.	Let Q be a subset of P. Each point in P is mapped to its closest point in Q which is illustrated by the Voronoi diagram of Q.	The graph induced complex is constructed by collecting all simplices {q₁, q₂, ..., q_k+1} if there is a (k+1)-clique in the graph G(P) with vertices {p₁, p₂, ..., p_k+1} such that p_i has q_i (i=1,...,k+1) as its closest point in Q.

H₁ inference from a very sparse subsample

Using the concept of homological loop feature size (see [DFW13]), the graph induced complex can be very small but still capture the H₁. In the Klein bottle example, there are 40,000 points sampled in R⁴. But the graph induced complex with size of 152 can still capture the H₁ of the Klein bottle. The following two figures give the comparison results between graph induced complex and another two popular simplicial complexes: Rips and witness complexes for this example. The descriptions of these figures are referred to the paper [DFW13].


This figure compares the ability of the simplicial complex to capture the H₁.		This figure compares the size of the simplicial complex.

Surface reconstruction by graph induced complex

Using graph induced complex, a sparse triangular mesh can be reconstructed from a very dense input point set sampled from a surface in 3D. The following two examples both have dense input point sets P with |P| > 1,000,000. The reconstructed meshes have size in thousands (see the size information in the paper [DFW13]).

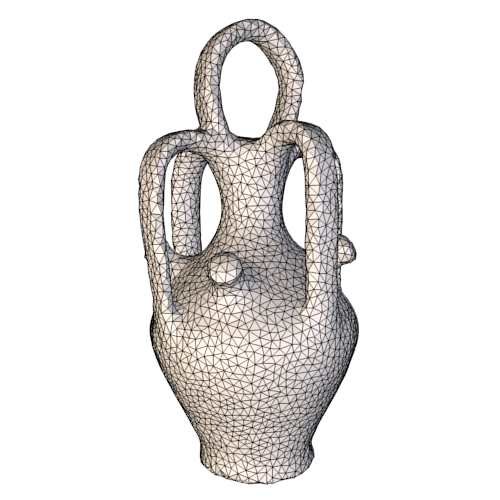

Reconstructed meshes by using graph induced complex
